Normally Update 9038S DAC + HPA, we name it 9038SG3. Pretty much the same sound and specs, but some major weaknesses of the G2 were greatly improved. The version will feature black sandblasted anodized aluminum and a CNC machined cap (the G2 uses a laser-cut that's not too accurate). The logo and set name are laser-marked, elegant and reliable solution VS G2 silk thread. Printed on the E1DA 9038S Gen 3, it has enhanced the already stunning sound output. Gen 2. It has improved the signal to noise ratio, dynamic range, and THD+N values, and delivers the ultimate audio output with high quality clarity and clarity. Rich output with completely background. Noise and distortion free

NEW USB AUDIO BRIDGE

The First Thing is another USB Audio Bridge HW volume (UAC2->ES9038), 32/384, and DSD256 support. Sure, it's a big deal, but still don't know whether other portable DAC with DSD256 support for Android, only DSD128. Also, 9038SG3 includes a standby mode to save battery if the DAC is idle > 2 minutes Strongly reduced LTE. Buzzing aka "STATIC", so the 9038SG3 become more portable. Slightly improves SNR, dynamic range, and THD+N. Due to the PCM384 and DSD frequency response extended up to 100kHz (10-100000Hz + 0.1/-0.3dB). The output is 100mOhm.

E1DA TWEAK" APP ON ANDROID SMARTPHONE

Sound mode have been deleted, and by default, only performance mode. (No Delays/Interrupts!) continues. Instead of the large number of hardware ES9038Q2M DAC controls presented, the new Android "E1DA Tweak" APP presets manager, harmonics, distortion compensation, Nyquist of selection, MasterClock frequency and so on, most of the parameters. These can be dynamically defined based on HW volume, audio data etc. In other words, make the ES9038Q2M based DAC, and save that as presets. (This stock in advance)! However, the APP release is delayed, thanks to covid19 one more time. The new USB bridge will allow you to update the 9038SG3 firmware by USB, and the FW file will let everyone who is going to use the APP.

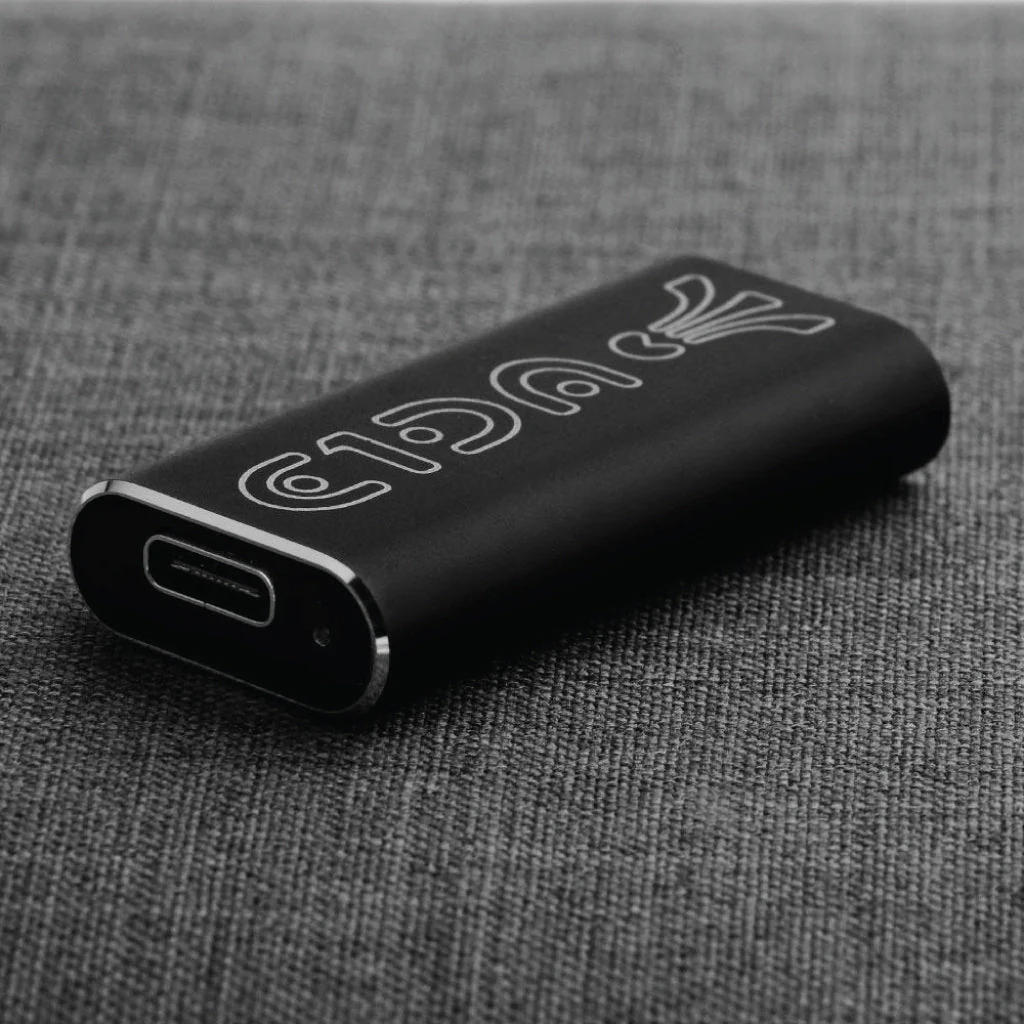

The new 9038S model will feature black sandblasted anodized aluminum and a CNC machined cap (the G2 uses a laser-cut that's not too accurate). The logo and set name are laser-marked, elegant and reliable solution VS G2 silk. silk print

All these improvements have some price but as usual, the 9038SG3 price range is similar to the Pioneer.

NOTE:
Don't use 2.5mm to 3.5mm adapter as that might damage the DAC.

Only 2.5mm TRRS balanced (4wire) cable should be used.

SPECIFICATIONS:

Material: Sand/Aluminum/ES9038Q2M/AD8397
Size: 48x22x9mm
Weight: 10g
Power: USB 5V Power Rail without battery within 90mA idle current, device has 4000uF of capacitance and IOS/Android device default OTG operation only. camera Adapter and USB OTG cable Y-Splitter respectively
Input: USB-C, PCM up to 24B/192kHz
Output: Balanced Output Jack 2.5mm A & K Pinout
Output Impedance: 0.05ohm @ 1000Hz Agilent U1733C
Output power: >340mW @ 32Ohm @ 1kHz @ THD = 1%
Output Power:>550mW @ 16Ohm @ 1kHz @ THD = 1% Measured at +.5dBFS Typical PC USB2 Port Powered
Frequency response: 10-85kHz + 05/-2dB @ 24B/192kHz
S/N Ratio: -122db(A) Refers to 3.399VRMS @ 32ohm
THD + N = 1% @ + 5dBFS Typical PC USB2 Port Powered
Crosstalk: -125dB @ 1kHz
